VARCHAR/NVARCHAR sizing/oversizing

It was not so long ago, we discusses with my colleagues what is the best VARCHAR/NVARCHAR sizing since these string data types allocate space in pages based on char-count stored in dynamically.

I remember that there is a saying that you should size our VARCHAR/NVARCHAR columns with size you really need. But from first sentence of this post and MSDN definition it seems that it does not matter. These data types could adapt on string you put in. Let’s have look on its little bit closer. This could not be answered by an easy way.

Create two tables with columns, type of VARCHAR and different size for each table. In my sample I created one with VARCHAR(20) and another one with VARCHAR(1000). (Do not use VARCHAR(MAX) since it is another story, I will describe in one of my next POSTs).

CREATE TABLE _varchar_20( id VARCHAR(20))
CREATE TABLE _varchar_1000( id VARCHAR(1000) )

Fill the tables with data with text size corresponding to the table column with the lover VARCHAR size. In my case 20, it means that the second table column will be oversized.

INSERT INTO _varchar_20
FROM sys.objects a
JOIN sys.objects b ON 1=1
JOIN sys.objects c ON 1=1

INSERT INTO _varchar_1000
FROM sys.objects a
JOIN sys.objects b ON 1=1
JOIN sys.objects c ON 1=1

Let’s check how tables differs from the storage point of view.

so.object_id,        sp.index_id,        sp.partition_id,        sp.hobt_id,        sa.allocation_unit_id,        sa.type_desc, sa.total_pages FROM sys.objects so JOIN sys.partitions sp on so.object_id = sp.object_id JOIN sys.allocation_units sa on sa.container_id = sp.hobt_id WHERE IN ('_varchar_20','_varchar_1000')

As we can see there is no different. Number of allocated pages is the same for all tables.

Pages count
Picture 01 – Pages count

Now run simple select queries and compare execution plans to check if there is no impact on query execution.

SELECT * FROM     _varchar_20
SELECT * FROM _varchar_1000

It seems that both execution plans are the same at first look.

Simmple query plan comparation
Picture 02 – Simmple query plan comparation

The only one counter differs – Estimated row size but it has evidently no impact on query execution.

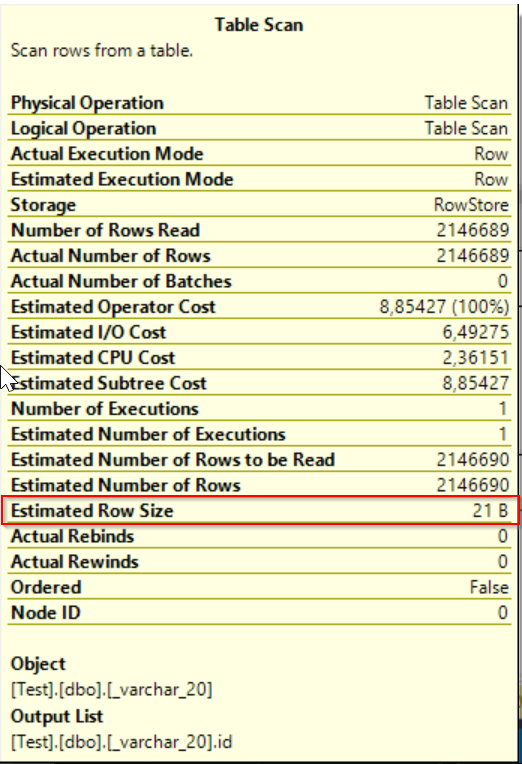

 Estimated Row Size
Picture 03 – Estimated Row Size

Estimated Row Size

04 – Estimated Row Size

Now we could say that sizing of VARCHAR/NVARCHAR has no impact on storage and query execution. BUT let’s modify our queries with sort operators and run them again.

SELECT * FROM     _varchar_20 ORDER BY id

SELECT * FROM _varchar_1000 ORDER BY id

As you can see query getting data from smaller column VARCHAR/NVARCHAR sizing run with less query costs and pefroms much better. What happened?

query plan comparation
Picture 05 query plan comparation

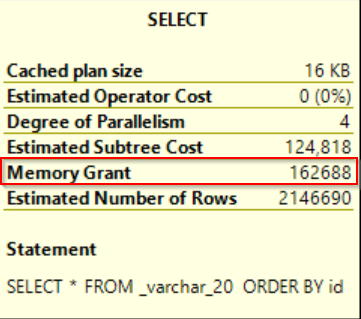

Click on SELECT operator to see its properties for both queries. As you can see there appeared row with MEMORY GRANT meaning that query asked for memory reservation based on Estimated row count as I mentioned above. Sometimes optimizer does not look at the data really stored in objects and checks statistics or catalog schema info, etc. as in this case.

Picture 06 – memory grant

 memory grant

Picture 07 – memory grant

So we could see that little change in query caused different query plans and costs estimation with better performance for smaller VARCHAR/NVARCHAR sizing.

My recommendation would states that it is better to size VARCHAR/NVARCHAR without oversizing columns when it is not really necessary.  Of course there could be scenarios that you expect that data could increase in time. But to increase length of your VARCHAR/NVARCHAR column is still easier job that if you have to reduce it.

It would be interesting to take a look at this theme from more perspectives. I will continue with this topic in my next posts where I extend this theme to indexes, predicates, etc.  Stay tuned!
